Seawalls

At Land and Sea Marine, we pride ourselves in constructing the straightest, cleanest and most durable sea wall in the business. Today’s seawalls are installed with a wide range of materials and costs depending on the contractor, exposure and armoring requirements of the property.

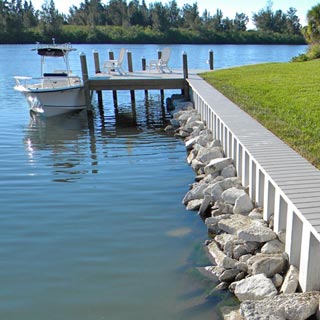

For vinyl seawalls, Land And Sea Marine uses Shoreguard™ vinyl sheet piles in conjunction with a wood boardwalk, vinyl boardwalk, or concrete cap installation. Shoreguard™ vinyl sheet pilings carry a 50 year manufacturer warranty. All tie back rods and fastening hardware are stainless steel. Vinyl seawalls are the ideal solution for exposure to heavy salt water or wood boring organisms, and are an excellent solution for both commercial and residential shoreline armoring requirements.

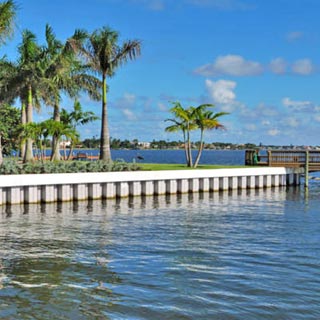

Concrete Cap Seawalls

Slide 1 of 25


This is a 650 series Shoreguard™ vinyl seawall on the Grand Canal in Satellite Beach. See Complete Project

The landward return wall shown here retains the property boundaries and provides runoff retention to the adjoining property

This is a FP 475 flat panel series Shoreguard™ vinyl seawall on the Grand Canal in Satellite Beach

This is a 425 series corrugated Shoreguard™ vinyl seawall on the Grand Canal in Satellite Beach

These two projects were installed concurrently on these two adjoining properties with a concrete bulkhead installed over the county drainage pipe that exits between the two properties

This is a 650 series Shoreguard™ vinyl seawall in the Brookside community in Indialantic. A 3000 lb vibrating hammer was used to drive these sheet piles through the natural rock layer below the canal bottom. See complete project

It features epoxy coated reinforcing steel and a thorocoat concrete sealer over the cap for added anti-corrosive measures

This side of the same seawall faces the Indian River and has concrete riprap installed for wave break and habitat properties.

This is an FP 475 flat panel series Shoreguard™ vinyl seawall on the Indian River in Indialantic also installed with concrete riprap.

This is a 425 series Shoreguard™ vinyl seawall on the Indian River installed at a low propfile to accomodate the existing topography, also with concrete riprap.

This is an FP 475 flat panel series Shoreguard™ vinyl seawall in the Snug Harbor community in Cocoa Beach.

This seawall was raised Aprox. 3′ from the height of the original seawall and over 20 truckloads of fill dirt was installed to give this property a complete makeover.

This is an FP 475 flat panel series Shoreguard™ vinyl seawall under construction in the Fountains community in Satellite Beach.

In the following photos, you will see the transformation from old to new on these Brevard County projects.

Wood/Vinyl Cap Seawalls

Slide 1 of 16

This is an FP 475 series Shoreguard™ flat panel vinyl seawall in Satellite Beach featuring vinyl decking.

This is a 425 series Shoreguard™ corrugated panel vinyl seawall in Melbourne Beach featuring vinyl decking.

The Sate Grey from Azek™ is a great color match for the grey sheet piles and a long lasting alternative to wood.

This is an 8′ landward return wall that contains the new higher elevation of the property and controls runoff into the neighboring yard.

This is a 425 series Shoreguard™ corrugated panel vinyl seawall in Satellite Beach featuring a custom color of Azek™ vinyl decking.

The dock was installed at the same time as the seawall with the decking integrated into the seawall cap for a clean and continuous feature.

This is a 425 series Shoreguard™ corrugated panel vinyl seawall in Melbourne Beach on Mullet Creek. It also features Azek™ vinyl decking in Slate Grey.  Mullet Creek is a natural water body and concrete riprap is required for habit.

The dock was also integrated into the seawall cap for a clean and continuous feature which actually expands the footprint of the dock over land.

This is an FP 475 series Shoreguard™ flat panel vinyl seawall on the Indian River in Indialantic featuring an eased edge treated wood decking and County required riprap.
